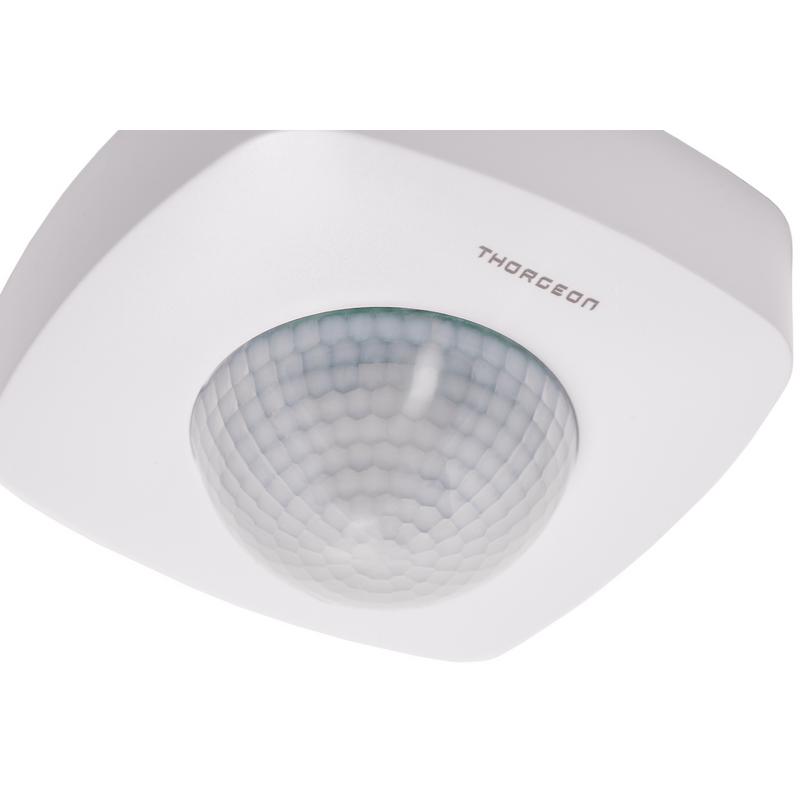

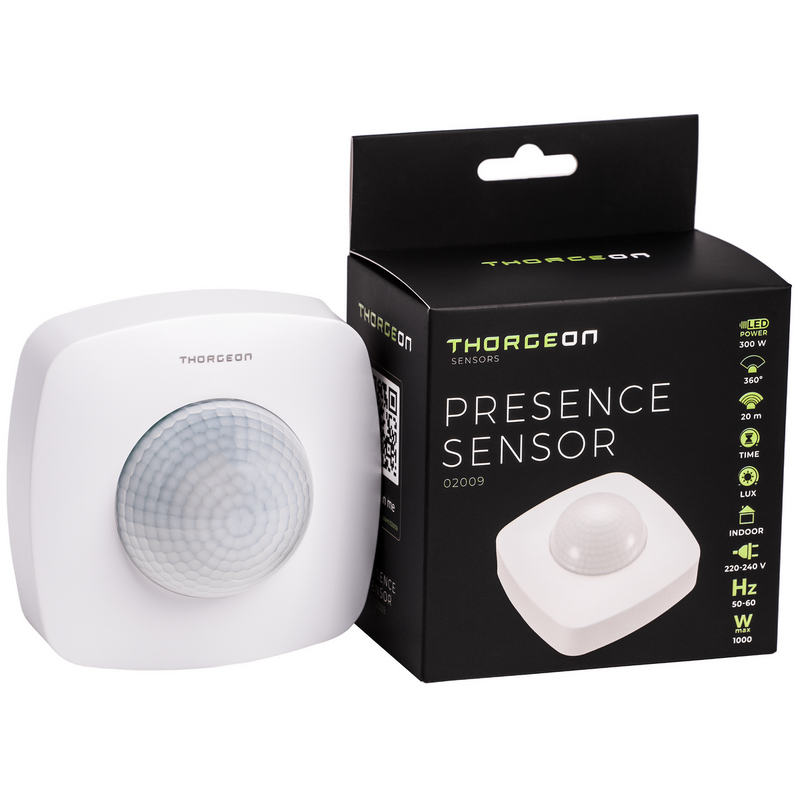

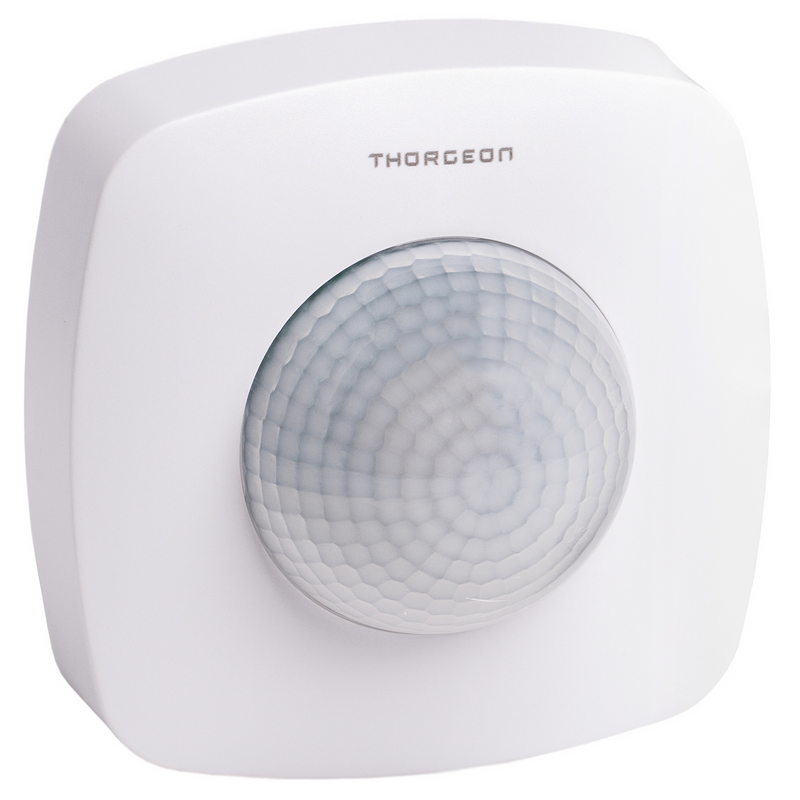

Presence detector 20m MAX 1000W IP20 Thorgeon

Made-to-order product

Delivery time approximately 2 weeks

Product code: 4751029890467

Technical specifications:

• Type: Presence detector
• Sensor: Passive infrared sensor
• Detection range: 360 degrees
• Maximum frontal range: 20 meters
• Light intensity adjustment: Yes
• Installation method: Surface mounting
• Connection type: Screw terminals
• Color: White
• Protection class: IP20 (not protected against water)
• Frequency: 50 - 60 Hz
• Minimum switch-on duration: 10 seconds
• Maximum switch-on duration: 30 minutes
• Maximum switching capacity: 1000 W
• Maximum LED switching capacity: 300 W
• Width: 102.5 mm
• Height: 102.5 mm
• Depth: 58.3 mm
• Nominal voltage: 220 - 240 V

• Constant light control: Yes
• Optimal installation height: 2.2 - 6 meters
• Maximum lateral range: 20 meters
• Sensitivity adjustment: Yes
• Suitable for ceiling mounting: Yes
• Material: Plastic
• Material quality: Thermoplastic

• Surface treatment: Untreated
• Surface finish: Matte
• RAL number (similar): 9010
• Voltage type: AC
• Light intensity value: 3 - 2000 lux
• Temperature: -20 to +40 °C

Brochure (in English)

User manual (in English)
