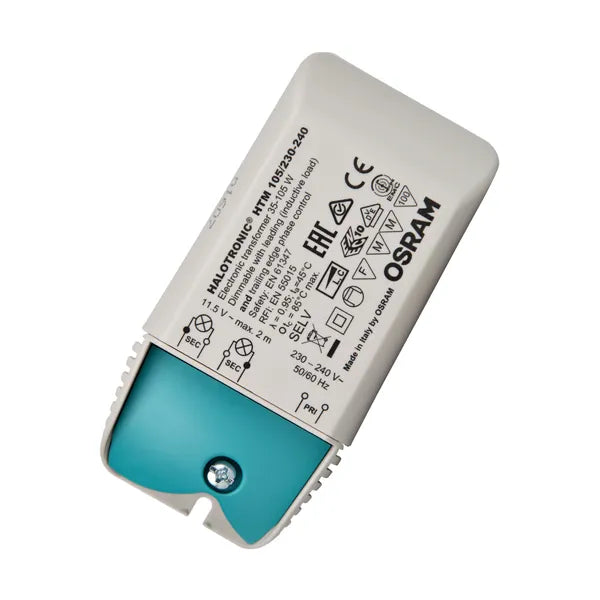

Osram HALOTRONIC-COMPACT HTM/HTN 105 electronic transformer 35–105W 230–240V – 108x52x33mm
Osram HALOTRONIC-COMPACT HTM/HTN 105 electronic transformer 35–105W 230–240V – 108x52x33mm
Osram HALOTRONIC-COMPACT HTM/HTN 105 electronic transformer 35–105W 230–240V – 108x52x33mm

Osram HALOTRONIC-COMPACT HTM/HTN 105 electronic transformer 35–105W 230–240V – 108x52x33mm

SKU 4050300442334
€55.45 - €55.45
€55.45
€55.45 - €55.45
€55.45

includes VAT 25.5% Shipping costs are calculated at checkout.

Availability:
in stock, ready to be shipped

The Osram HALOTRONIC-COMPACT is an electronic transformer for 12V halogen and LED systems, with a load range of 35–105W. Its compact design (108 × 52 × 33 mm) fits inside furniture or dropped ceilings. The secondary voltage of 11.3–11.4V meets the precision requirements of LED systems better than a traditional iron-core transformer.

E-number 4031020 · Product code 4050300442334 · Dimensions 108 × 52 × 33 mm · 4 outputs

Technical specifications

  • Type: electronic transformer for 12V systems
  • Input voltage: 220–240V AC, 50/60 Hz
  • Secondary voltage: 11.3–11.4V
  • Load range: 35–105W
  • Outputs: 4 pcs

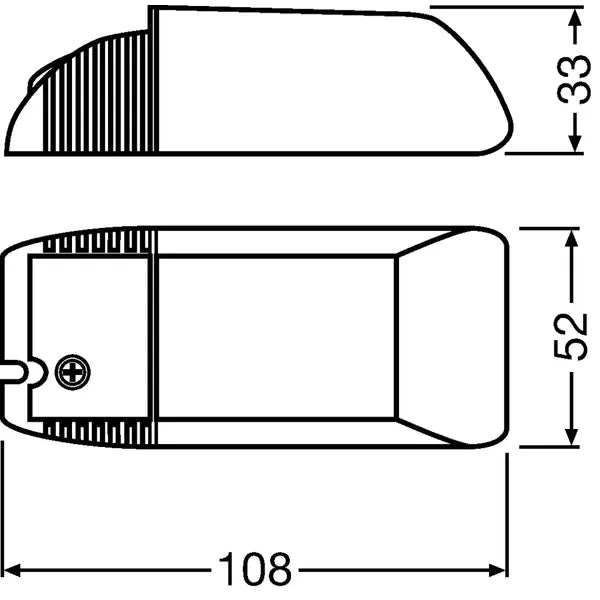

  • Dimensions: 108 × 52 × 33 mm
  • Protection class: IP20 (indoor use)
  • Service life: typically 50,000 h in normal use
Compatibility and installation

Suitable for: 12V halogen lamps (GU5.3, G4, G6.35) as well as 12V LED lamps whose manufacturer specifies compatibility with electronic transformers. With LED systems, ensure that the minimum load is met — a single small LED may not be enough to trigger the transformer.

Dimming: this model (HTM/HTN series) is a non-dimmable version. If you want a dimmable system, you need an HTi series transformer and a compatible dimmer.

Installation checklist:

  1. Calculate the total power of the connected lamps — at least 35W, at most 105W.
  2. Use a separate transformer for each lamp line if the total power exceeds 105W.
  3. Place the transformer in a location accessible for replacement — not in a sealed, insulated space.
  4. Always have the installation performed by a licensed electrician.

Browse the transformer selection or check the warranty terms of our partners.

Power: 35-105W

Onko kysyttävää tästä tuotteesta?

Kerro, mihin tuote tulee, tai lähetä kuva kohteesta. Autamme valitsemaan oikean ennen kuin tilaat.

Kysy WhatsAppissa tai soita 050 544 3557

Vastaamme arkisin klo 8–16, viimeistään seuraavana arkipäivänä.

Delivery

We ship your order from our warehouse in Jyväskylä. Orders placed before 2 PM are usually shipped on the same day. Free delivery within Finland for orders over €150.

Warranty

Products purchased through Lumenled come with a manufacturer's warranty, supported by Lumenled in cooperation with the importer. You can find detailed warranty terms here: Warranty terms of our partners.

Request an offer
tai Pyydä tarjous WhatsAppissa

Usein kysytyt kysymykset

Is this transformer suitable for LED lamps?

Yes, if the LED lamps are designed to work with an electronic transformer — the manufacturer will state this in the product information. Ensure that the total power of the lamps is at least 35W (the transformer's minimum load) — with low-wattage LED lamps alone, the transformer may not start. A simple rule: at least 7 pieces of 5W LED lamps on the same circuit.

Can an old iron-core transformer be replaced with this?

Yes, if the load range (35–105W) is suitable for the system. An electronic transformer is significantly lighter (approx. 125 g vs. 1–3 kg) and more energy-efficient. The secondary voltage of 11.3–11.4V is more precise than in a traditional transformer, which extends the service life of LED lamps.

Is the transformer dimmable?

No. The HTM/HTN series is a constant-power transformer. For dimmable systems, you need an Osram HALOTRONIC HTi series transformer and a compatible trailing-edge or 1–10V dimmer.

How many lamps can I connect?

Depends on the wattage of the bulbs. Examples: 20W halogen MR16: 2–5 pcs (40–100W). 5W LED MR16: 7–20 pcs (35–100W). 3W LED G4: 12–34 pcs (36–102W). Keep the total wattage well below 105W to avoid overloading — use a separate transformer for longer bulb strings.
