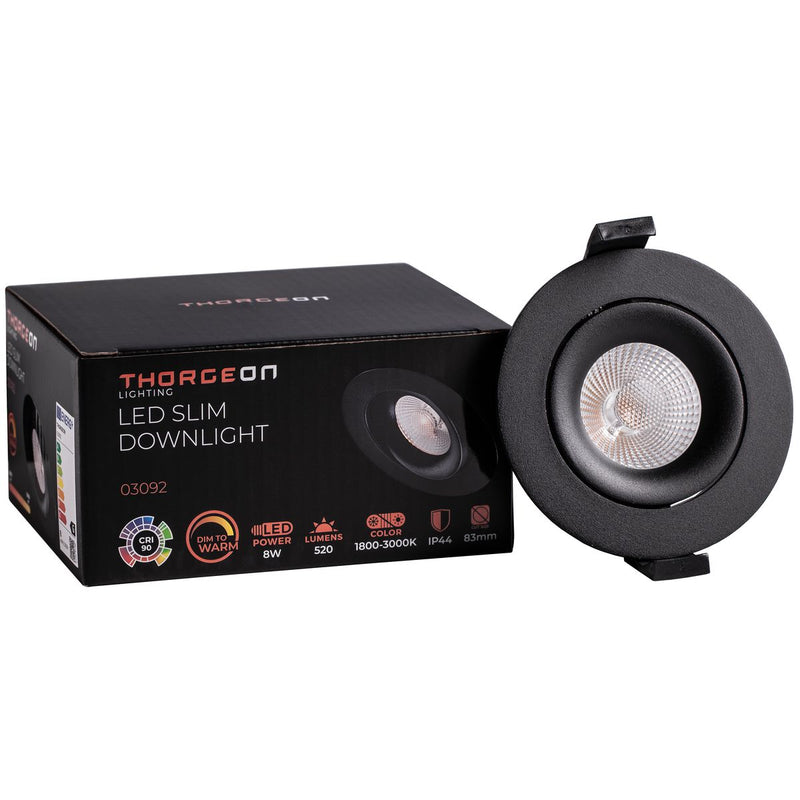

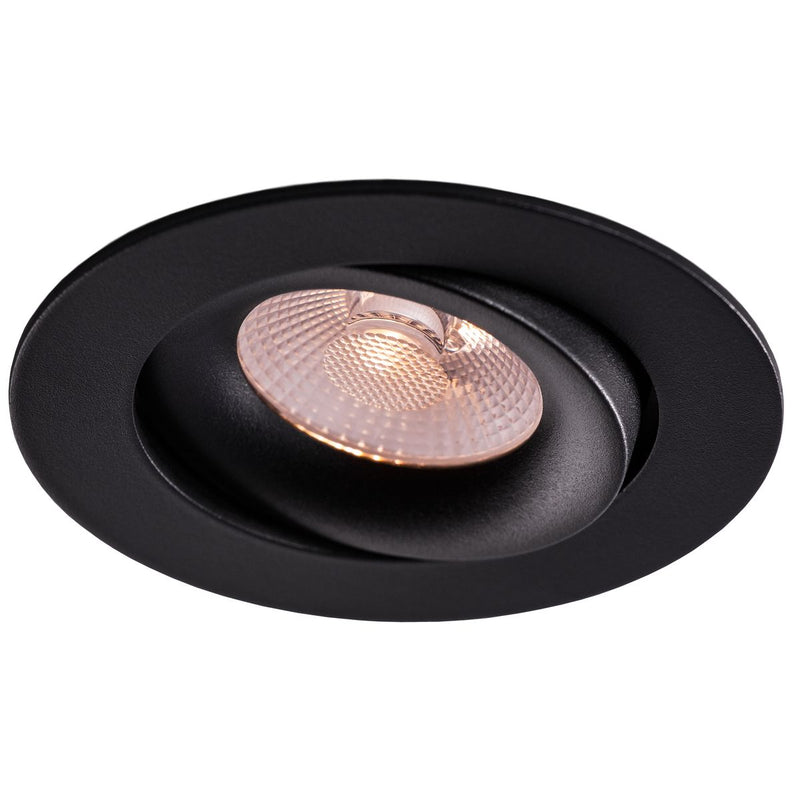

8W, 520lm, LED Downlight, Dim to Warm, 38°, IP44, IK04, 1800K/3000K, 83mm, Black LED Downlight Thorgeon

Product code: 4751029898630

Installation:

• Recessed mounting: Yes
• Ceiling mounting: Yes

Adjustability:

• Swivel: Yes

Housing:

• Material: Aluminum
• Color: Black

• Surface treatment: Not brushed

Electrics:

• Rated voltage: 220-240 V
• LED nominal current at constant current: 23 mA
• Control gear: No
• Replaceable control gear: No
• Dimming: Yes, phase cut and phase control
• Power factor: 0.8
• Flicker value (Pst LM): 1
• Total harmonic distortion: 32
• Conductor cross-section: 0.75 mm²
• Connectable conductor cross-section: 0.75 - 1.5 mm²

Light source:

• Lamp type: LED
• Beam angle: Medium 21-40°
• Color temperature: Continuously adjustable
• Luminous flux: 521 lm
• Luminous intensity: 973.1 cd
• Color: White
• Suitable lamp power: 8 W

Dimensions:

• Outer diameter: 96 mm
• Recess width: 83 mm
• Recess height/depth: 41 mm
• Recess length: 83 mm

Protection:

• Protection class (IP): IP44
• Impact resistance: IK04
• Average life of light source (L70/B50, 25 °C): 35000 h
• Luminous flux at average life (35000 h, 25 °C): 5 %
• Color consistency (McAdam ellipse): SDCM6
• Glare (UGR): 19.6
• Photobiological safety according to EN 62471: Other (more precise information missing)
• Suitable for workplaces according to EN 12464-1: Yes

Additional information:

• Warranty: 5 years
• No motion sensor
• No light sensor
• No emergency power supply
• No filament test according to IEC 60695-2-11
• Luminaire can be covered with thermal insulation material
• No IFTTT support
• Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa

Brochure (English)
