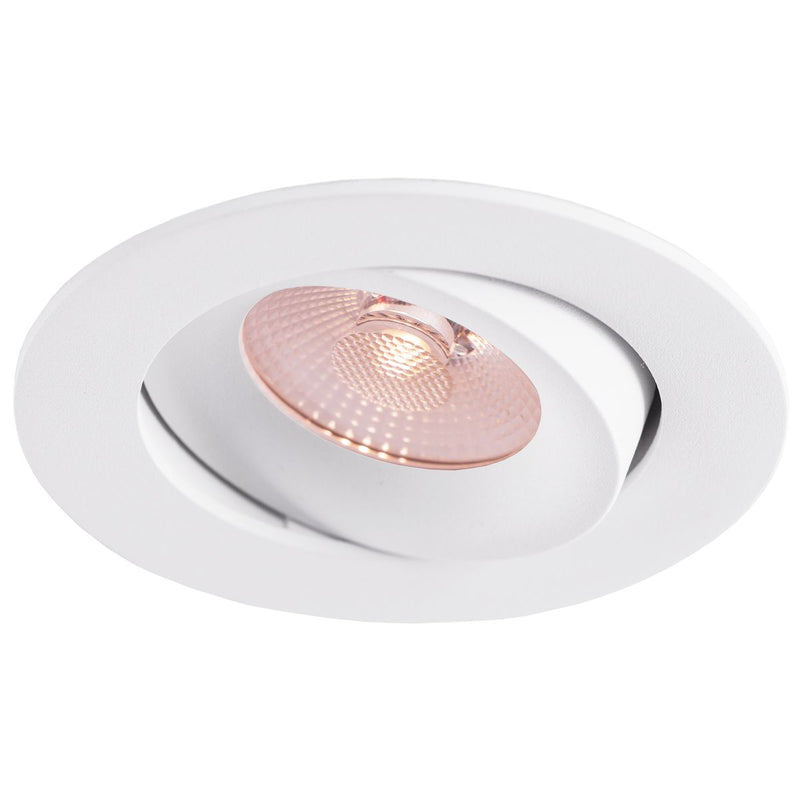

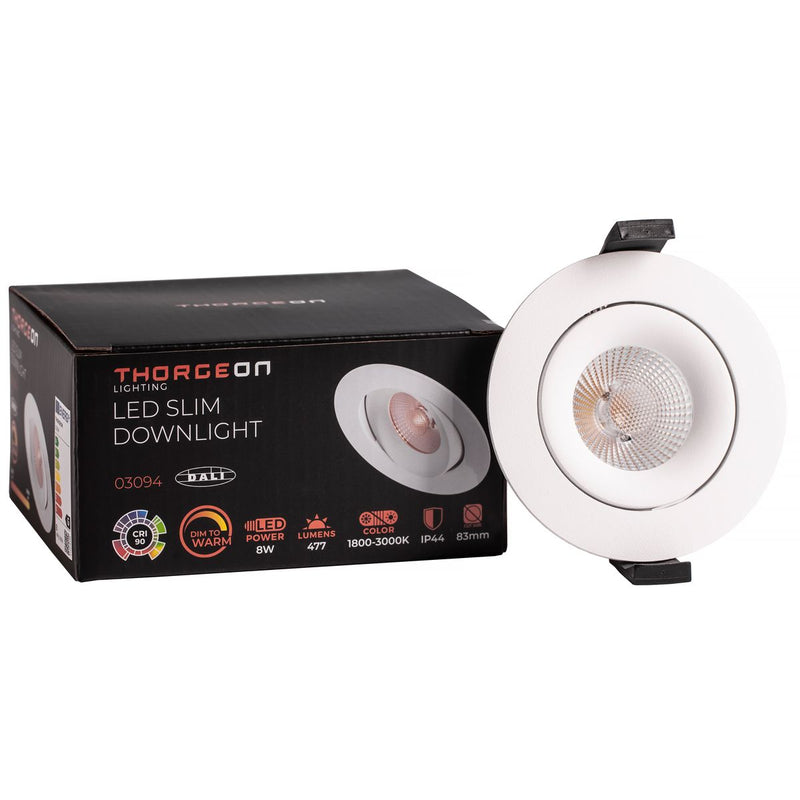

8W, 520lm, LED Downlight DALI, Dim to Warm, 38°, IP44, IK04, 1800K/3000K, 83mm, White LED Downlight Thorgeon

Made-to-order product

Delivery time approx. 2-3 weeks

Product code: 4751029898654

Installation:

• Recessed installation: Yes
• Ceiling installation: Yes

Adjustability:

• Adjustable: Yes

Housing:

• Material: Aluminum
• Color: White

• Surface treatment: Not brushed

Electrics:

• Nominal voltage: 220-240 V
• LED nominal current with constant current: 23 mA
• Control gear: No
• Replaceable control gear: No
• Dimming: DALI, DALI-2
• Power factor: 0.8
• Flicker value (Pst LM): 1
• Total harmonic distortion: 32
• Conductor cross-section: 0.75 mm²
• Connectable conductor cross-section: 0.75 - 1.5 mm²

Light source:

• Lamp type: LED
• Beam angle: Medium 21-40°
• Color temperature: Continuously adjustable
• Luminous flux: 521 lm
• Luminous intensity: 973.1 cd
• Color: White
• Lamp power: 8 W

Dimensions:

• Outer diameter: 96 mm
• Recess width: 83 mm
• Recess height/depth: 41 mm
• Recess length: 83 mm

Protection:

• Protection class (IP): IP44
• Impact resistance: IK04
• Average lamp life (L70/B50, 25 °C): 35000 h
• Luminous flux at average life (35000 h, 25 °C): 5 %
• Color consistency (McAdam ellipse): SDCM6
• Glare (UGR): 19.6
• Photobiological safety according to EN 62471: Other (more detailed info missing)
• Suitable for workplace according to EN 12464-1: Yes

Additional information:

• Warranty: 5 years
• No motion sensor
• No light sensor
• No emergency power supply
• No glow wire test according to IEC 60695-2-11
• Luminaire can be covered with thermal insulation material
• No IFTTT support
• Not compatible with Apple HomeKit, Google Assistant, or Amazon Alexa

Brochure (In English)
